Outline |
|
|
| The sensor network combining sensor system, embedded
system and RF system is used wirelessly in connection
with the existing network and is recognized as a leading
system that will provide a solution suitable for the
ubiquitous age.
Therefore, in the educational field, the demand for
the educational board of the wireless sensor network
is on the increase. ZigbeX of Hanback Electronics
Co., Ltd provides diverse linkage and storage devices
by loading X-scale CPU of recognized powerful performance.
And it also provides an authentic wireless sensor
network that connects the sensor information on the
Zigbee supporting mote to a farther server by constructing
an autonomous communication network.
Besides, it can be connected to any sensor or actuator
as it is designed in consideration of the capacity
of sensors |
|
| |
Description |
|
| - |
Use 400MHz X-scale CPU with powerful performance |
| - |
Stable high performance platform (used as an embedded
platform in colleges nationwide) |
| - |
Provide diverse linkages (USB, LAN, Bluetooth, serial,
IrDA, RF) |
| - |
Provide diverse storage facilities (USB, SDRAM, FLASH)
|
| - |
Provide a large-scale LCD for GUI(640x480) |
| - |
Touch screen method |
| - |
Supported with PS2 keyboard |
| - |
Supported with diverse USB 2.0 devices (Wireless,
Bluetooth, memory, Hard disk) |
| - |
Supported with Zigbee |
| - |

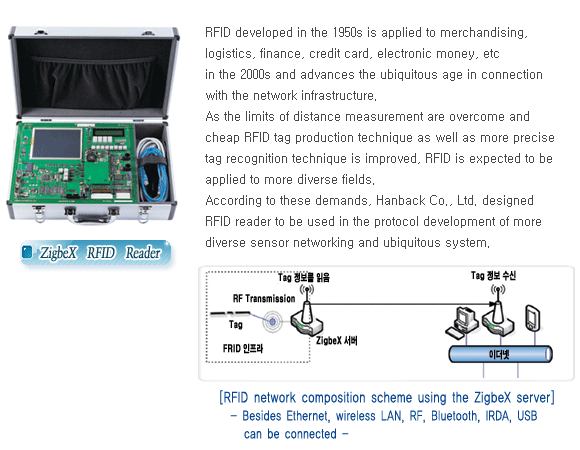

Equipped with REID |
| - |
Provide an embedded Linux solution (provide Qtopia,
TinyX, Windows environment) |
| - |
Capable of diverse RTOS porting including uCOS |
| - |
Capable of being geared with SEM 21, RF, and Bluetooth
|
| - |
Provide diverse exercise programs through plentiful
embedded system development experience |
| - |
Provide standard teaching plans and user manuals |
| - |
Provide development environment setting devices, and
the embedded Linux development methodology |
| - |
Educational support with plentiful experience |
| |
|
| |
Server Description |
|
|
|
| Item |
|
Description |
|
| CPU |
|
Intel PXA255 400MHz |
|
| Memory |
|
128MB SDRAM 32MHz Flash |
|
| Security |
|
10/100Mbps network controller 2EA |
|
| Transfer BPS |
|
640¡¿480 TFT LCD, ADS7846 SSP(6.4¡±) |
|
| Base sensor |
|
FFUART, BTUART, IRDAUART |
|
| Power |
|
FFUART, BTUART, IRDAUART |
|
| Length |
|
Real time Clock |
|
| VGA |
|
640¡¿480 resolution |
|
| JTAG |
|
USB2.0 Host(option), Client 1 |
|
| USB |
|
USB2.0 Host(option), Client 1.1 |
|
| RF |
|
Zigbee 2.4GHz CC2420 interface |
|
| IrDA |
|
data communication port(PDA, Not ebook) |
|
| Card socket |
|
PCMCIA, MMC, CF card socket |
|
| Ext Device |
|
LED(8EA), character LCD, 7-segment, push button |
|
| Power |
|
220V AC SMPS Power |
|
| Support OS |
|
Embedded Linux, WinCE, uC |
|
|
| |
Chief features of ZigbeX mote |
|
|
 |
| - |
Use general purpose ATMega128 CPU |
| - |
Stable 8bit High performance Platform |
| - |
Provide sensor data storage devices (SDRAM,
FLASH) |
| - |
Construct a real-time sensor network with TinyOS
porting |
| - |
Capable of autonomous communication networks |
| - |
Provide Zigbee |
| - |
Provide a PCB pattern antenna capable of ..communicating
up to |
| - |
125m and an extension antenna terminal (used
for extending receiving distance) |
| - |
Porting of uCOS RTOS |
| - |
Provide an extension port capable of equipping
with diverse sensors |
| - |
Provide diverse sensors for each applied level,
..easy for fixing the user sensor |
| - |
Size: 40mmx70mm |
| - |
Electric power source 1.2V Ni-cd 2ea or 1.5V
AA ..2ea |
|
| - |
Powerful control function of electric power source |
| - |
Provide diverse exercise programs through plentiful
development experience |
| - |
Provide standard teaching plans and user manuals |
| - |
Provide development environment setting devices |
| - |
Educational support with plentiful experience |
| |
|
| |
Basically equipped sensors |
|
|
| - |
Basically equipped with temperature, illumination
and humidity sensors, and RTC on the mote |
| |
|
| |
Option senser module |
|
|
| - |
Meteorological sensor module - infrared ray, ultraviolet
ray, and atmospheric pressure sensors |
| - |
Crime prevention module - proximity sensor, magnetic
sensor, far-infrared ray sensor |
| - |
HA sensor module - gas sensor, flame perception, human
body perception, crime prevention sensor |
| - |
Location tracing sensor - GPS sensor |
| - |
Structural mechanics sensor - inclination, terrestrial
magnetism, pressure, acceleration, bending |
| - |
OA sensor module - supersonic waves, sound perception,
human body perception, magnetic sensor |
| - |
Biosensor module - piezoelectric sensor for pulse,
thermal sensor for body temperature |
| - |
Automobile sensor module - vibration, acceleration
sensor, sound perception sensor |
| |
|
| |
Mote Description |
|
|
|
|
| Hardware Item |
|
Description |
|
| Micro Controller |
|
ATmega128 / (program 128Kbyte SDRAM 2KB EEPROM 4KB
AD 10bit 8Channel) |
|
| RF part |
|
CC2420 2.4GHz Zigbee(IEEE 802. 15. 4) |
|
| Security |
|
DSSS |
|
| Transfer BPS |
|
Maximum 250K BPS |
|
| Base sensor |
|
Basically equipped with temperature, illumination
and humidity sensors, and RTC |
|
| Power |
|
1.5V AA 2ea or 1.2V Rechargeable battery 2ea |
|
| Length |
|
40mm ¡¿ 70mm |
|
|
|
| Software Item |
|
Description |
|
| TinyOS |
|
Non-preemptive thread OS / Low Power Management |
| Ad-hoc routing application / nesC compact code size
|
|
| uCOS |
|
RTOS support |
|
| RF |
|
1EEE 802. 15. 4 protocol 2.4GHz |
|
| Development environment |
|
nesC compiler / GNU AVR gcc compiler / ISP downloader |
|
|
|
